Academic Year:
2009
Supervisors:
Marwan Mahmoud Students:
Nabeel Massri
Mousa Nasif
Department:
Electrical Engineering
The idea of the project:
Is to build a three phase full controlled bridge rectifier ,use it to supply different types of load and to make investigations about the improvement of its grid current .
Bridge Characteristics:
Single phase bridge rectifier has many characteristics and applications which make it widely used in the industrial applications and these characteristics can be summarized in the following points:

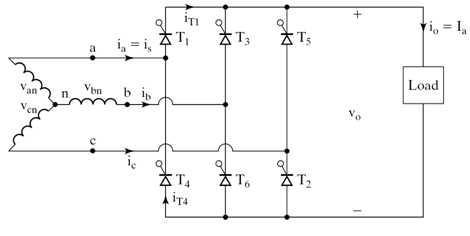

Figure 1: The three phase bridge Rectifier
-
Two quadrant operation is possible.
-
The thyristors are triggered at an interval of pi/3 .
-
It is also used to control the speed of DC motors
-
This circuit is widely used in dual converters (ups).
-
It can be used in continuous mode depend on the firing angle.
.
