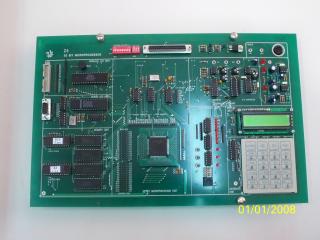

80386 Microprocessor Trainer System(Hardware + Software) 32 Bits.
Works as a stand-alone system where the CPU can be controlled from the keybad and can also be run direct from the PC.
1. 32-Bit 80386 EX microprocessor.
2. 32-KB static RAM.
3. 16-KB EPROM.
4. 8-bit parallel interface.
5. Serial interface RS-232
6. Keyboard with hexadecimal and function keys
7. LCD display
8. has on-board logic probe for signal logic test (8 led set with 8 lines probe)
9. IR ( Interrupt routines)
10. ADC and DAC converter
11. Monitor program in EPROM with controls for:
• data insertion/change in RAM
• display and change register contents
• I/O ports control
• continuous, step execution of programs
• breakpoint control
I/O Microprocessor Application Modules:

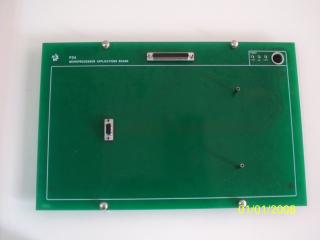

1. F04-0/EV & PS3-C/EV ase Module , this module is to be used with the shown below I/O boards so as to make the connection with the Microprocessor trainer with power supply for powering the applications moduels

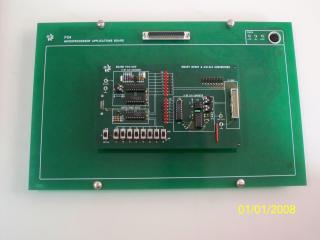

2. F04-1 /EV Binary In/Out signals and AID & D/ A converters
3. F04-2/EV Stepper Motor Module, this module to be used with F04-0/EV and the microprocessor trainer
4. F04-3/EV DC Motor Module, this module to be used with the base module F04-0/EV
5. F04-4/EV Force and Temperature Transducers Module J this module to be used with the base module F04-0/EV
6. F04-6/EV Ultrasonic TxIRx system Module this module to be used with the base module F04-0/EV
